SMS TAG-ID2 – Professional ID & Tag printer

The unique ID & Tag printer for the industry.

The SMS TAG-ID2 is designed to enhance and simplify your current Tag & Lock-Out/Tag-Out method.

Produce high-quality Tags with a professional system that allows you to personalise your Tags. Ensure that signage during maintenance work leaves nothing to be desired. This will make maintenance more efficient and faster with maximum safety for your people.

Professional, compact and user-friendly

The SMS TAG-ID2 is a professional printer that fits in any workplace thanks to its compact size. The printer itself is extremely user-friendly and the (optionally) included label software makes designing and printing your tags and labels even easier!

Tags & Lock-out / Tag-out

TAG-ID & CHECK-IT!

Creating colour-coded Tags with detailed information about the risk contribute to the purpose of a Tag: to convey a clear message! Printing your own Tags ensures a clearly legible message in clear “handwriting”.

Combined with our tag materials, this Tag printer offers you the following benefits:

– “Track” your products even faster

– Manage your stock more easily

– Determine status and/or hazard at a glance

From Tag printer to Type Plate printer

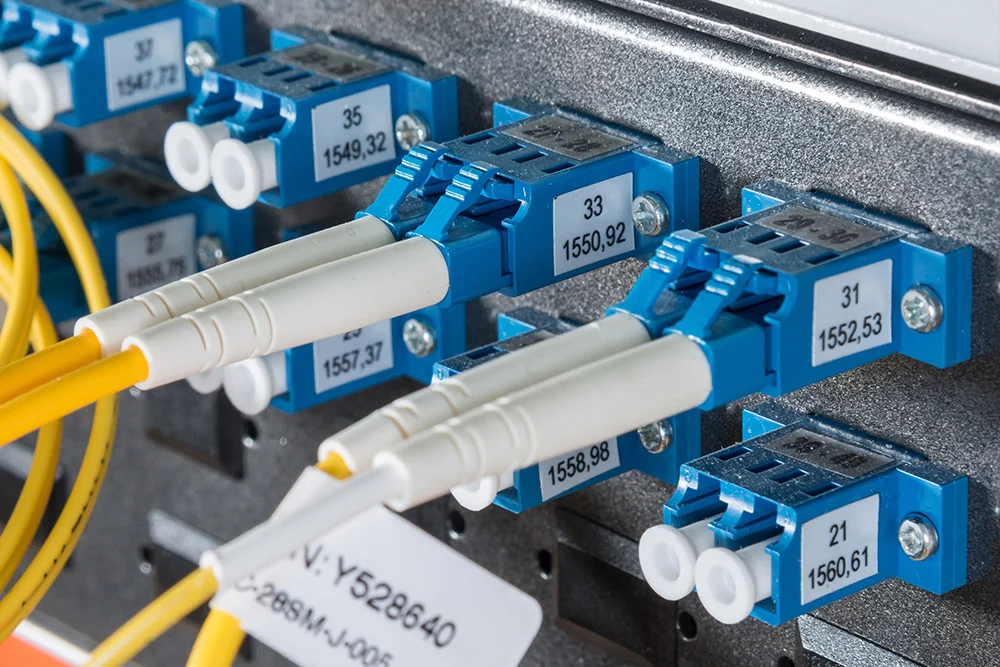

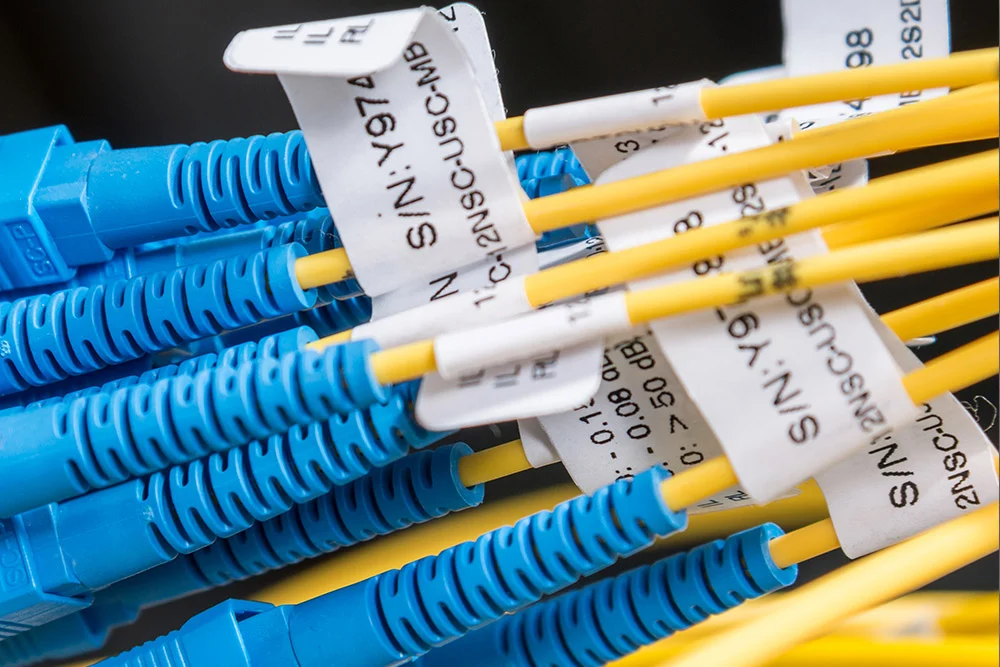

Besides Tags you print with the SMS TAG-ID2 high-quality reso labels, shrink tubes, cable tags, wire wraps, various types of die-cut labels such as rating plates, GHS labels, pipe markers and more!

Luminous tags - Rebo Systems

Luminous Tags – Exclusively at Rebo!

New to our range of tag materials are the exclusive ReGLO Tags. Improve safety and visibility with tags that light up in the dark! These photoluminescent tags are ideal for marking objects that need to remain visible in the event of an evacuation or light failure.

Click to view!

Click on the image to enlarge.

Watch the instruction videos


Loading the supplies


USB driver installation


Network driver installation

ONE SYSTEM, COUNTLESS APPLICATIONS

The SMS TAG-ID2 makes it easy to create all the labels listed below.
Is your application not listed here? Get in touch with us!

(Click on an image to enlarge)

Specifications

Print Speed
25.4 – 101.6mm per second

Resolution
300 dpi

Print Width
Up to 10.4 cm

Print Length
Up to 1270mm

Printer

Printer type

Direct thermal & Thermal transfer

Resolution

300 dpi

Print speed

Max. 101.6mm/s

Print length

Max. 1270mm

Print width

Max. 104mm

Dimensions

L 278mm x W 220mm x H 187mm

Weight

2,4kg

Connectivity

Standard: USB device, RS-232, Ethernet, USB host

Operation

2x LED Light (Power/Ready) / 1x button (Feed)

Sensors

1x Gap /1x “Reflective” (movable) / 1x “Transmissive” / 1x “Print head open” / 1x “Print ribbon end”

Power supply

Input voltage

100-240V, 50-60HZ

Output voltage

DC Output: 24V, 3.75A

Other

Relative temperature

5°C – 40°C

Relative humidity

0% – 90%, non-condensing

Storage temperature

-20°C – 60°C

Certification

CE, FCC, UL/cULus, CCC, RoHS, BSMI

Supplies



SMS TAG-ID2 materials



Die-cut Tags (T300 & TT300) – Non-adhesive, tear-resistant tags on a roll. Available in various sizes and colours.
Tags (T100)* – Non-adhesive, tear-resistant tags supplied on a continuous roll.

Wire-Wraps (WI100) – Self-laminating wrap-around labels where the print is protected from damage and fading.

Cable Tags (EC100) – High-quality cable ID tags attachable with tie-wraps, halogen-free and fire-retardant.

ResoLabels (RL100) – The alternative to resopal. Thickened labels of durable quality for machine and button markings.

GHS Labels – Pre-printed GHS labels in various sizes, with choice of up to 4 red diamonds.

Inspection stickers – Inspection labels with your own logo and specifications, in various colours and designs.

Pipe marking– Various types and colours of die-cut pipe markers to quickly and easily identify all your pipes.

Die-cut labels – Durable industrial labels a.o. suitable for product and equipment ID labels. Available in many materials, colours, shapes and sizes.

Standard materials*
Industrial vinyl (E300) – Standard adhesive strength, ideal for indoor and outdoor use.
Premium vinyl (ST700) – High adhesive strength, for durable industrial labels for long-term indoor and outdoor use.
High-Tack (HT700)– Extremely high adhesive strength, for difficult substrates such as dirt-repellent plastic, slightly greasy substrates, tiles, wood, etc.
Polyester (PT700) – High adhesive strength, for nameplates and other durable applications. For long-term industrial use.
High temp. tape (H250) Extremely high adhesive strength, for direct application on substrates up to 250°C.
Cold Weather tape (CW200) – High adhesive strength, for direct application on surfaces down to – 25°C.

Continuous tape materials*
Removable tape (R300) – Removable tape for temporary markings.
Reflective tape (RT500)– Reflective tape for indoor and outdoor use.
Fluorescent tape (FL500) – Fluorescent tape for high visibility.
Photoluminescent tape (RG500)– Highlighting tape for indications that must remain visible in the event of light failure.
VOID polyester (PV500)– High adhesive strength, for sealing/security: after the label is removed, the text VOID remains. For long-term industrial indoor use.


* If you want to cut these materials automatically, the SMS TAG-ID2 must be fitted with an (optional) scissor unit.


Ribbon

Type

Wax, Resin, Wax/Resin

Downloads

Driver & Tools

SMS Printer Driver

Driver for using SMS printers (.EXE bestand)

SMS Printer Tool

Tool for managing IP settings and advanced settings (.MSI file)

Label templates

To simplify label design and printing, we have several label templates available that you can download and easily customise and print as required.

View and download all label templates on this page .

Looking for a specific template or have another question? Feel free to contact us.

Software

Our label printers are typically supplied with NiceLabel label software. This software is available in several versions, each with its specific application.

Do you wish:
• Simple or advanced design and print functions?
• Single or multiple printer or user licences?
• Print directly from a PC or via a (shared) network?

Ask our consultant which package best suits your needs/situation or download one of the trial versions to try it out.

NiceLabel Designer (Pro & Express)

Download 30-day trial

NiceLabel PowerForms (Pro & Suite)

Download 30-day trial

Detailed information on these software levels can be found on this page.

Personal demonstration?

Look here for more information!

A completely non-binding introduction!

Our consultant will be happy to give you a demonstration without any obligation at your desired location. This way you can get acquainted with the system, its use and its advantages.
